Project Information

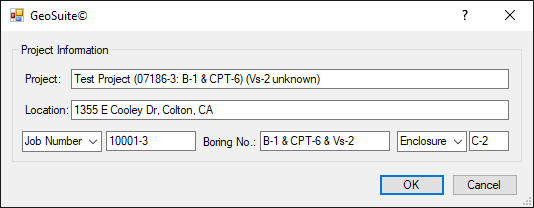

Input project information:

Project information will be added to the title box of output.

Project:

Input your project name here.

Location:

Add the address or other location of your project

Boring No label:

Select from "Job No.", "Project No.", or custom input as the label for output enclosures.

Boring No.:

Input Boring Number, CPT number, and/or Vs number.  One single project data file can contain all of three type of data, SPT, CPT, and Vs. To correlate the Boring No. (or CPT No. or Vs No.) to corresponding data,  the Boring No. text box input should be formated as: B-1 & CPT-3 & Vs-2.

SPT Boring No. can be expressed either in "B-*" or as "SPT-*", CPT sounding No. in "CPT-*", and Vs data in "Vs-*".

Enclosure label:

Select from "Enclosure", "Figure", "Plate", or custom input as the label for output enclosures.

Initial enclosure number:

Input the initial number, e.g. 1, A-1, ...The output page number will automatically count.

The enclosure number can also be changed in the final output.

For example, if you select "Enclosure" and input the initial number as "C-1", the output page numbering will be "Enclosure C-1", "Enclosure C-2", and so on.  If you select "Figure" and input the initial number as "3", the output page numbering will be "Figure-3", "Figure-4", and so on.

After clicking the button, the following dialog box will pop up to allow you to save the data file to where you want. The default data file name is in a format of GeoSuite_Job No._Boring No.cvs. The default folder to save is "Documents".

As long as the data file is saved into a specified folder, it will be automatically saved whenever there is a change in the input. This will prevent any loss of input data.
